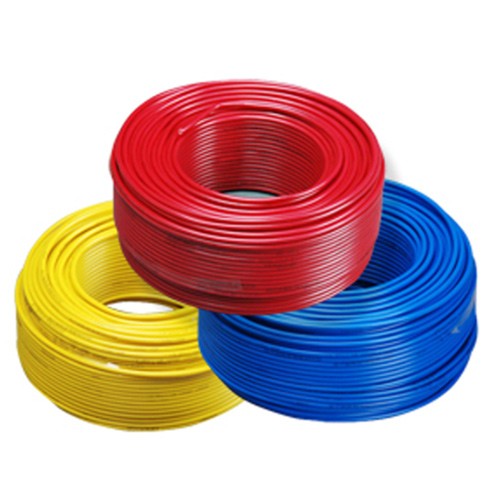

SXL Crosslinked Low-Voltage Automotive Wire

SXL Crosslinked Low-Voltage Automotive Wire is a vehicle-specific cable that complies with the SAE J 1128 standard. It features a stranded copper conductor and flame-retardant crosslinked polyethylene (XLPE) insulation, enabling stable performance across a wide temperature range of -40℃ to 125℃.
This wire provides excellent resistance to heat, oil, abrasion, and low temperatures, along with superior mechanical strength and flexibility. It is mainly used for internal wiring and component connections in automobiles, especially in environments requiring high flexibility, thermal stability, and mechanical robustness. Its thicker insulation layer also ensures more reliable performance under complex working conditions.

1. Product Overview

SXL Crosslinked Low-Voltage Automotive Wire is a specialized connection cable designed for automotive internal wiring. It features a crosslinked polyethylene (XLPE) insulation layer and stranded copper conductor, delivering excellent resistance to high and low temperatures, mechanical strength, and weather resistance. Compliant with the SAE J 1128 standard, it ensures stable power and signal transmission under complex automotive operating conditions.

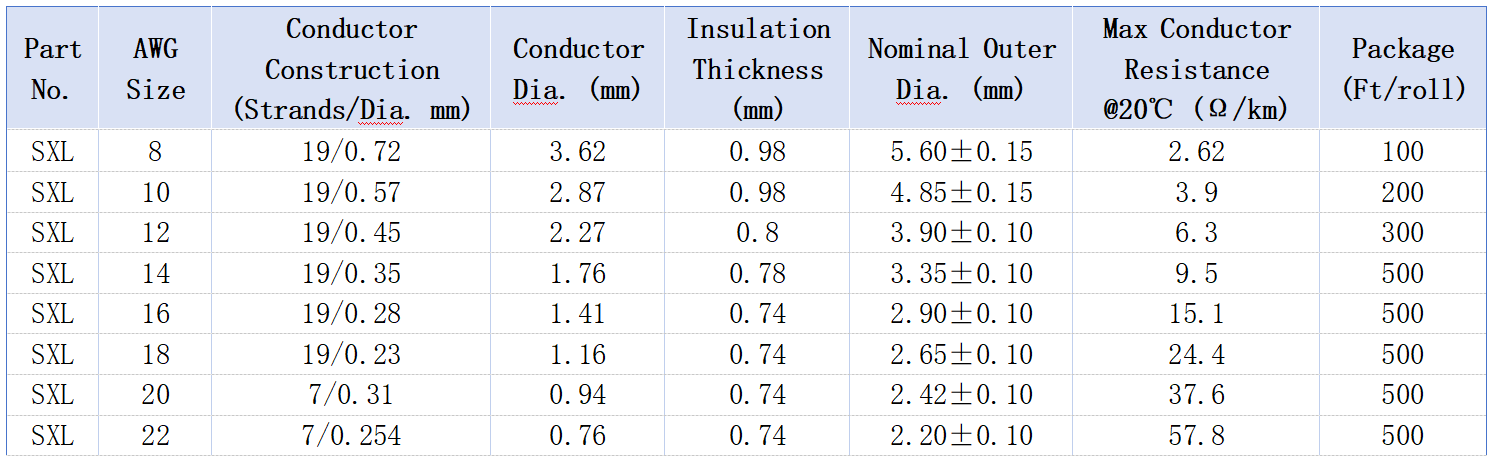

2. Core Performance Parameters

· Operating Temperature Range: -40℃~125℃ – maintains stable performance in extreme temperature environments, with insulation properties unaffected by temperature fluctuations.

· Compliance Standard: Meets the international automotive industry standard SAE J 1128, ensuring reliable safety and quality.

· Key Features: Resistant to heat, oil, abrasion, and cold, with excellent mechanical strength to adapt to complex automotive scenarios.

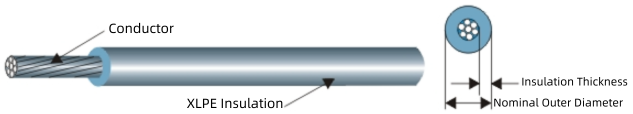

3. Structural Features

1. Conductor: Constructed from stranded copper, providing excellent conductivity and flexibility to fit diverse wiring spaces in automotive interiors.

2. Insulation Layer: Made of crosslinked polyethylene (XLPE), which offers superior resistance to high and low temperatures, chemical corrosion, and electrical insulation strength compared to standard PVC insulation, resisting aging and cracking over long-term use.
